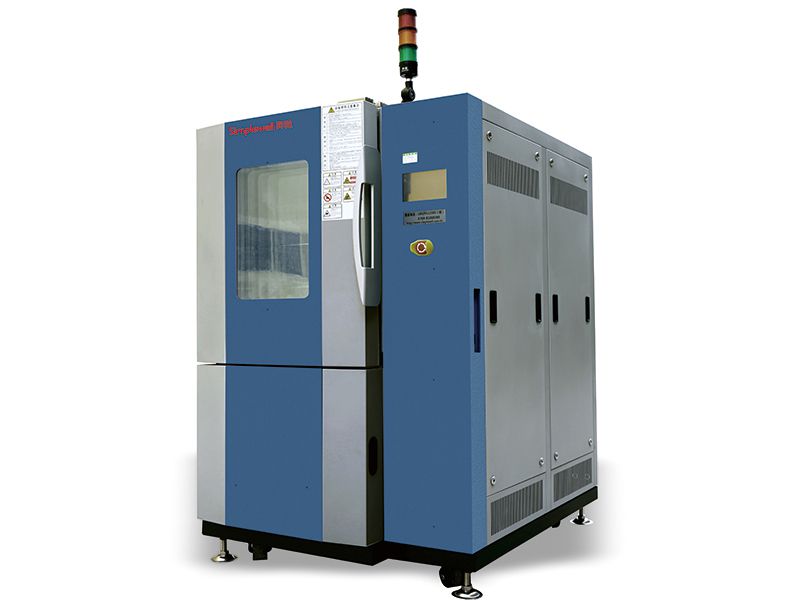

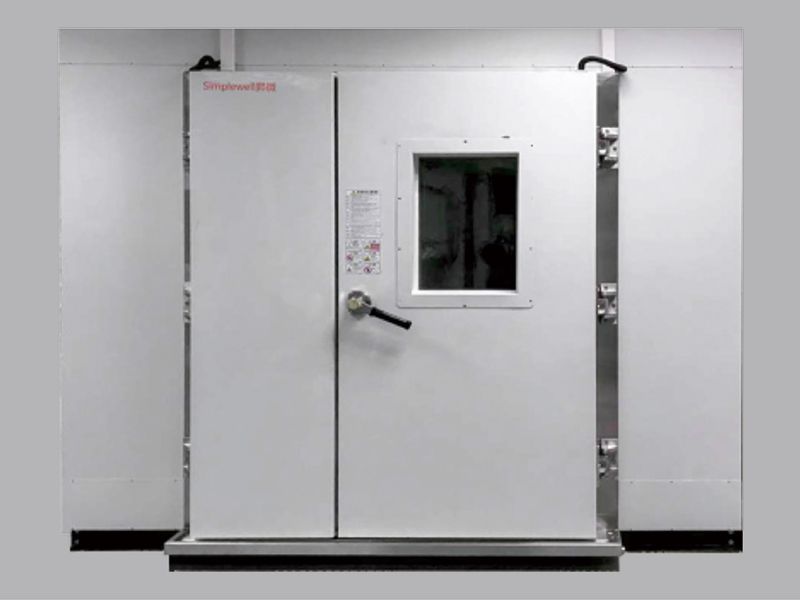

Auto Parts Sunlight Simulation Test Chamber

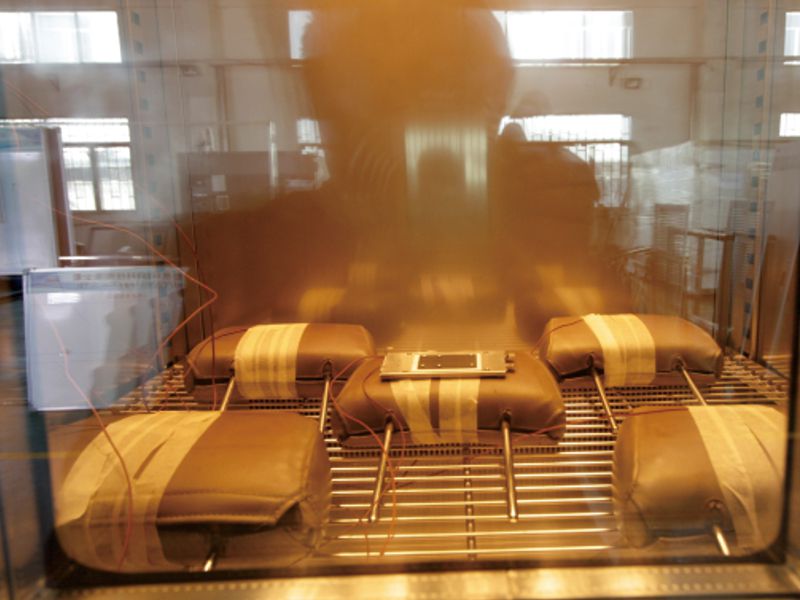

ApplicationAuto parts sunlight simulation test chamber is applicable for testing the automotive interior parts such as IP, DP, Cockpit, CNSL, ashtrays, air outlets and other parts.
Technical parameters
| temperature range | -50°C～+120°C |
| Temperature deviation | ≤±2 ℃ |
| Temperature uniformity | ≤2 ℃ |
| Temperature fluctuation | ≤±0.5 ℃ |
| Heating rate | ≤1℃/min or customized |
| Cooling rate | ≤0.7℃/min or customized |
| Humidity range | 20-95%rh |
| Humidity deviation | ≤±5%rh |
| Humidity fluctuation | ≤±2.5%rh |
| Light intensity | 1200w/m2; When the air temperature is about 65 ℃, the surface temperature of the tested object can be controlled to 120 ℃ |
| Low temperature relative humidity monitoring device is optional; relative humidity in low temperature is ≤ 30% rh | |
| Self-compiling program control | |
| Temperature and humidity control range without active heat load |
| PR308.2 2006 | version, 70℃ 95%RH, 105℃ storage in high temperaturel |
| GB2423.1-2008(IEC68-2-1:2007) | Test A :Low temperature test |
| GB2423.2-2008(IEC68-2-2:2007) | Test B: High temperature test |
| GB2423.3-2006(IEC68-2-78:2001) | Test Cab :Constant damp heat test (if there are requirements for humidity) |
| GB2423.4-2008(IEC68-2-30:2005) | Test Db :Alternating damp heat test (if there are requirements for humidity) |
| GJB150.3A-1986 | High temperature test |
| GJB150.4A-1986 | Low temperature test |
| GJB150.9A-1986 | Damp heat test (Figure 1, Figure 2) |
| GJB899-90 | Reliability identification and acceptance test |
| GJB1032-90 | Selecting method of environmental stress of electronic products |
| GB10589-2008 | Technical specifications for low temperature test chamber |
| GB11158-2008 | Technical specifications for high temperature test chamber |
| GB10586-2006 | Technical specifications for damp heat test chamber |
| MS210-05 | |
| IEC60068-2-2, -3, -28, -30, -56 | |
| JJF1101-2003 | Thermal stability test of automotive parts |

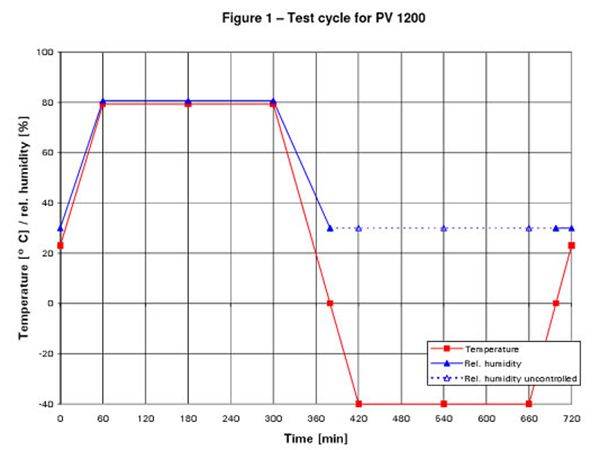

| PV2005 Scheme A 2000 version | PV1200 2004 version |
