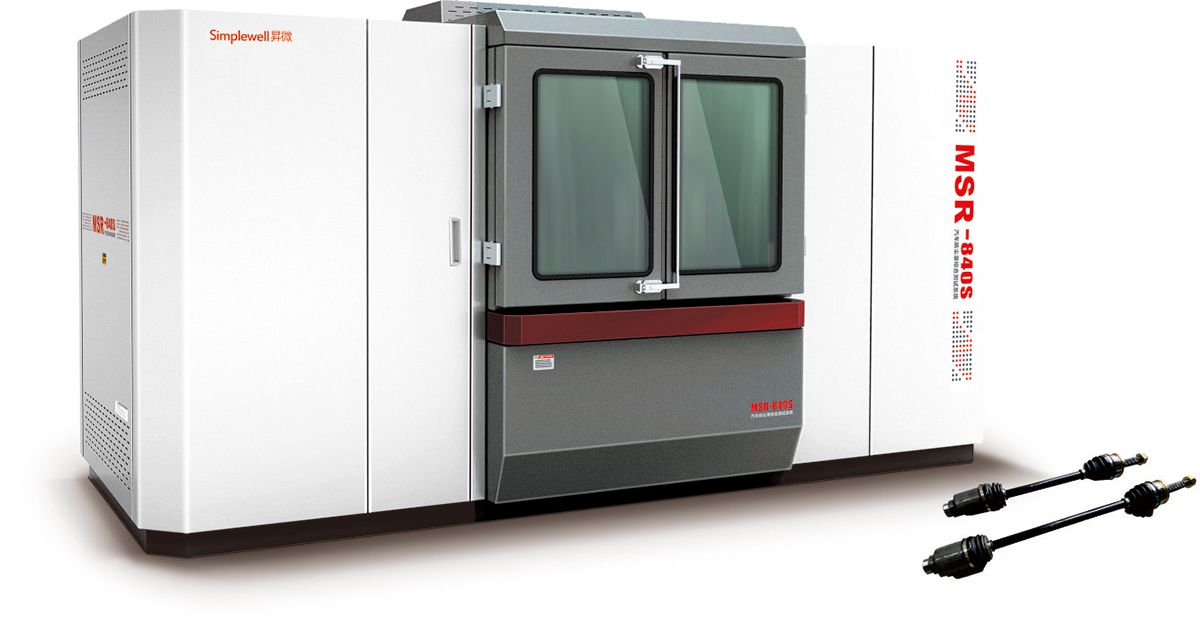

Automobile Dust Boot Test Chamber

The patented testing system is intended for testing car dust and transmission shafts.

Technical Parameters of Comprehensive Testing System for Car Dust Boots
Temperature range -60-200℃
Temperature deviation ±2℃
Pendulum angle -50° to +50° (The limit values might change under ultra-low temperature)
Rotary speed 20-3000rpm (The limit values might change under ultra-low temperature
Sliding displacement -8 to +8mm, with a precision of ±1mm
Ozone concentration 20 to 200ppHm, controlled by relay
Control system Micro-computer industrial controller (equipped with control software)

Automobile dust boot comprehensive testing system has obtained a patent for invention. It carries out torsion test, tensile test, swing test, high temperature test, low temperature test and anti-aging test of car dust boot. Automobile dust boot comprehensive testing system effectively solves problem of heat dissipation and the test results is reliable. Automobile dust boot comprehensive testing system completes test      without dissembling the car drive shaft and dust boot separately. After the test, drive shaft and dust boot can also be used as auto parts.
