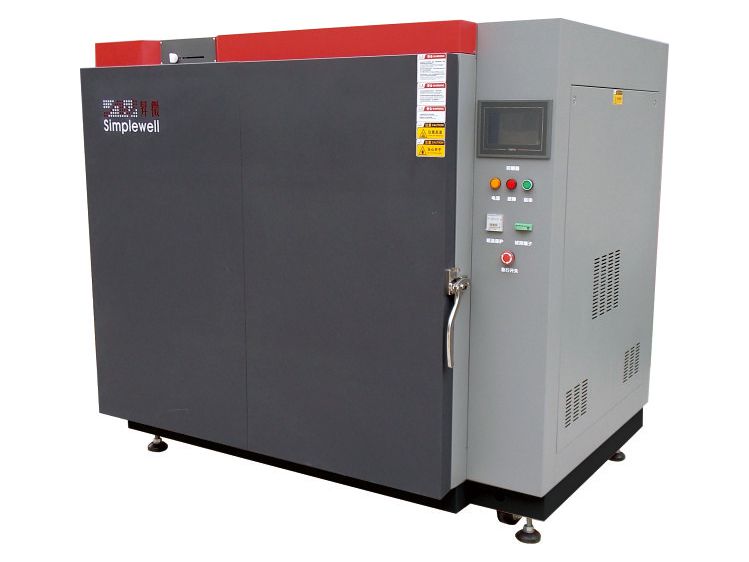

91L-1000L High Temperature Aging Oven

Technical Parameters of High Temperature Aging Oven
Model SH-101 SH-201 SH-301 SH-401 SHH-101 SHH-201 SHH-301 SHH-401
volume(L) 91 216 512 1000 91 216 512 1000
Properties Temperature range (RT+20℃) to 200℃ (RT+20℃) to 300℃
Temperature fluctuation ≤100ºC ±0.4℃ ±0.4℃ ±0.4℃ ±0.4℃
≤200ºC ±0.8℃ ±0.8℃
≤300ºC ---- ---- ±0.8℃ ±1.2℃
Temperature deviation ≤100ºC ±1.5℃ ±1.5℃ ±1.5℃ ±2.0℃
≤200ºC ±2.0℃ ±2.0℃ ±2.0℃
≤300ºC ---- ±3.0℃ ±4.0℃
Heat-up time (Environment temperature+20℃)→200℃ (Environment temperature +20℃)→300℃
≤40min ≤60min ≤90min ≤100min
Internal size (W×H×D) mm 450×450×450 600×600×600 800×800×800 1000×1000×1000 450×450×450 600×600×600 800×800×800 1000×1000×1000
External size (W×H×D) mm 1040×820×635 1190×970×785 1500×1210×1065 1730×1480×1275 1140×930×735 1290×1070×885 1600×1310×1165 1830×1580×1375
Temperature and humidity adjustment methods Heated air circulation, air exchange
Environment temperature (0 to +40)℃
Material Housing Double-side galvanized sheet, plastic coated
Internal surface SUS201/2B stainless steel plates (Matt surface)
Insulation Glass wool, 100mm thick Glass wool, 150mm thick
Regulator Heater Nichrome fin heater
Air door Manual switch
Fan Axial fan
Control method Touchscreen micro-computer controller, integral windup PID
Auxiliary functions Malfunction alarm, over-temperature alarm, temperature protection, automatic diagnosis, save settings.
Power (kW) 2 3 5 6 3 4 6 10
Weight (KG) 95 130 240 430 150 185 290 480
Power supply AC220±10%V 50Hz, single-phase+ ground wire AC380±10%V 50Hz, three-phase four-wire+ ground wire AC220±10%V 50Hz, single-phase+ ground wire AC380±10%V 50Hz, three-phase four-wire+ ground wire

Notes
1. Above parameters are measured when the oven continuously runs, at an ambient temperature of +25℃, with no sample and no air exchange.
2. The fluctuation parameter is tested in accordance with GB/T5170.2-2008 standard.
3. The convex part is not counted in the oven dimensions.

The detection system and detection method are suitable for various test chambers for different temperatures. According to the specific needs for testing, users can control the heating power to realize rapid warming. The temperature difference can also be accurately controlled. 91L-1000L high temperature aging oven is characterized by fast heating rate, small temperature difference and high detection precision.

  • Simplewell controller
  • Mitsubishi PLC
  • Temperature and humidity adjustment range

Optional Configurations
1. Rotary dehumidifier/ polymeric membrane, with a lowest temperature/ humidity content of 5℃/5 %RH.
2. Built-in tempered glass door, easy to move
3. Water purification system, with automatic replenishment function
4. Recorder, save and print testing data
5. Ultrasonic humidifier/ high-pressure spray humidifier, providing continuous high humidity under extreme temperature
6. Dry air blow system, anti-condensation
7. Remote monitoring function, cellphone and computer supportive

Cooling Equipment

  • TECUMSEH fully hermetic compressor
  • BOCK inverter compressor
  • BITZER semi-hermetic compressor
