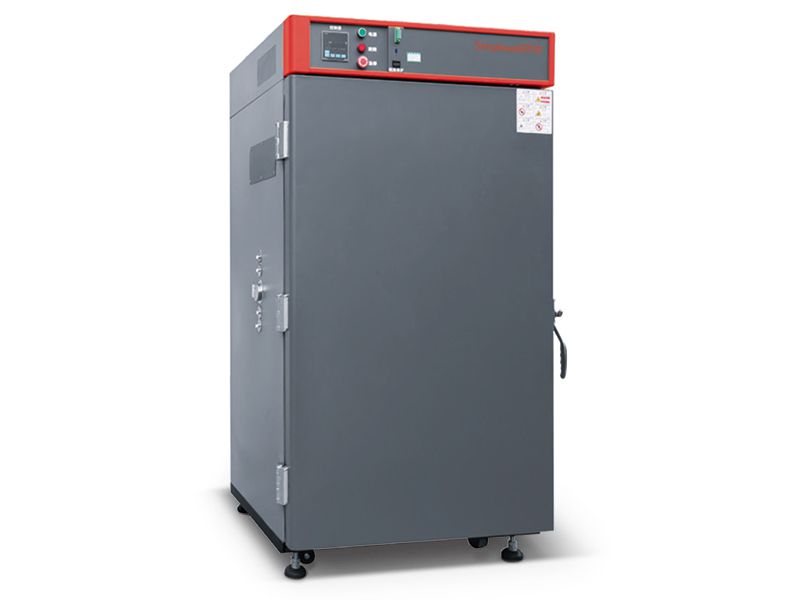

Industrial Drying Oven

The high temperature oven is extremely suitable for the reliability tests of electronics, automotive configurations, components, raw materials and so forth. The high temperature industrial oven complies with the GB standard for electronic products.

Technical Parameters of High Temperature Oven
Model SV221 SV331 SVH221 SVH331
Nominal internal volume (L) 324 768 324 768
Properties Temperature range (RT+20℃) to 200℃ (RT+20℃) to 300℃
Temperature fluctuation ≤100℃±0.4℃ ≤200℃±0.8℃ ≤300℃±1.2℃
Temperature deviation ±1.5℃ ±2℃ ±3℃ ±4℃
Heat-up time (Environment temperature +20℃)→200℃:≤40min (Environment temperature +20℃)→200℃:≤60min (Environment temperature +20℃)→200℃: ≤90min (Environment temperature +20℃)→ 200℃:≤100min
Internal size (mm) W610×H900×D600 W830×H1200×D800 W610×H900×D600 W830×H1200×D800
External size (mm) W770×H1500×D925 W1030×H1800×D1145 W780×H1600×D1025 W1130×H1900×D1245
Temperature and humidity adjustment methods Heated air circulation, air exchange
Environment temperature (0 to +40)℃
Materials Housing Double-side galvanized sheet, plastic coated
Internal surface SUS201 stainless steel plates, mirror-smooth surface
Insulation Fiberglass
Regulator Heater Nichrome fin heater
Air door Manual switch (The open angle can be adjusted)
Fan 1 centrifugal fan 2 centrifugal fans 1 centrifugal fan 2 centrifugal fans
Control method Touchscreen micro-computer controller, PID+SSR
Auxiliary functions Malfunction alarm, over-temperature alarm, temperature protection, automatic diagnosis, save settings.
Weight (kg) 190 320 240 370
Power (kw) 4.8 7
Power supply AC220±10%V 5KW 50Hz, single-phase+ ground wire AC220±10%V 8KW 50Hz, single-phase+ ground wire AC380±10%V 8KW 50Hz, three-phase four-wire + ground wire AC380±10%V 10KW 50Hz, three-phase four-wire + ground wire

Notes
1. Above parameters are measured when the oven continuously runs, at an ambient temperature of +25℃, with no sample and no air exchange.
2. The fluctuation parameter is tested in accordance with GB/T5170.2-2008 standard.
3. The convex part is not counted in the oven dimensions.
4. Power: SV221: single-phase, SV331, three-phase

The detection system and detection method are suitable for various test chambers for different temperatures. According to the specific needs for testing, users can control the heating power to realize rapid warming. The temperature difference can also be accurately controlled. 324L 768L high temperature aging oven is characterized by fast heating rate, small temperature difference and high detection precision.

  • Simplewell controller
  • Mitsubishi PLC
  • Temperature and humidity adjustment range

Optional Configurations
1. Rotary dehumidifier/ polymeric membrane, with a lowest temperature/ humidity content of 5℃/5 %RH.
2. Built-in tempered glass door, easy to move
3. Water purification system, with automatic replenishment function
4. Recorder, save and print testing data
5. Ultrasonic humidifier/ high-pressure spray humidifier, providing continuous high humidity under extreme temperature
6. Dry air blow system, anti-condensation
7. Remote monitoring function, cellphone and computer supportive

Cooling Equipment

  • TECUMSEH fully hermetic compressor
  • BOCK inverter compressor
  • BITZER semi-hermetic compressor
