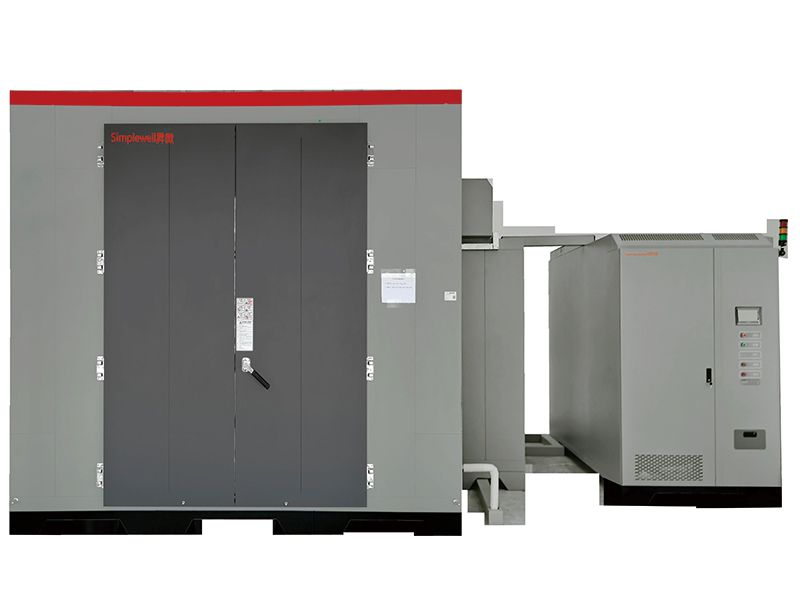

Full Scale Formaldehyde Emission Test Chamber

The internal surface of chamber is made using SUS# 304stainless steel.
This formaldehyde emission test chamber is a great choice to test formaldehyde, acetaldehyde, benzene derivatives and other low boiling point VOCs. However, it’s unsuited for high boiling point VOCs and polar compounds, like tetradecane and 4-phenyl-1-cyclohexene.

Application of Formaldehyde Emission Test Chamber
1. The emission chamber offers standard testing environment to determine the hazardous gas emission rate and emission characteristics of interior decoration materials and products. Based on the results, we can:
• Determine the impact of environmental variables on the emission rate and emission characteristics.
• Classify the level of products and materials according to the emission characteristics
• Develop and adjust indoor air pollution models
• Evaluate the IAQ (Indoor Air Quality) according to the pollution data and test report
2. As being a functional equipment of formaldehyde emission test, the emission chamber finds a wide application in interior decoration, office furniture, engineered wood, carpets, plastics, leather, textile, toys and more.

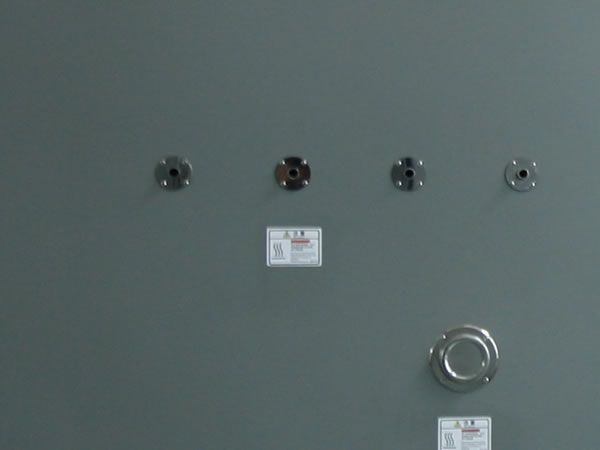

  • Sampling holes (The hole number can be customized)

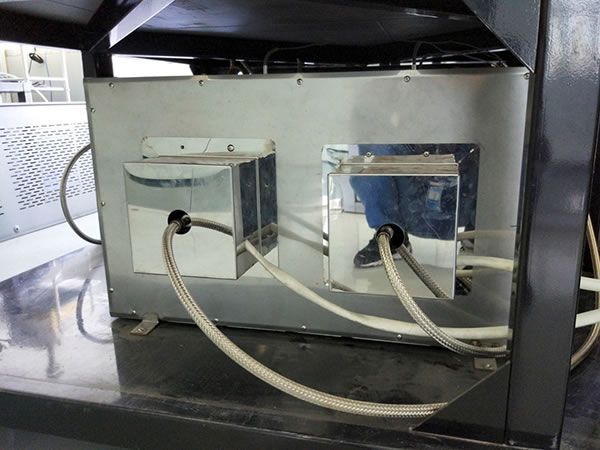

  • High-temperature catalyst container
Technical Parameters of Full-Scale Formaldehyde Emission Test Chamber
Model V-3000 V-5000A V-8000 V-10000 V-12000 V-15000 V-24000 V-30000 V-72000
Environment temperature 5 ℃-35 ℃
Environment humidity ≤90%RH
Environment requirements With no pollution source, TVOC ≤500ug/m ³
Size of climate chamber (W×D×H) mm 1500×1350×1500 1670×1500×2000 2000×1600×2500 250×1600×2500 3000×1600×2500 3200×2000×2500 3000×3200×2500 3000×4000×2500 3000×6000×4000
Size of chamber door (H×W) mm 1200×800 1800×900 1900×900 1900×1100
Temperature adjustment range 15 ℃ - 40 ℃, more than 70 ℃ for high-temperature cleaning
Humidity adjustment range 40 - 60%RH( 20 - 30 ℃ )
Pressure 10 ±5pa
Temperature fluctuation ± 0.3 ℃
Temperature deviation ± 0.5 ℃
Humidity fluctuation ±2.5%RH
Humidity deviation 3%
Air exchange rate 0.2- 5 times/h ±5% (0.2 - 3 times/h ±5% optional)
Air velocity 0.1m/s - 0.3m/s
Power supply AC 380V/50Hz/ Three-phase four-wire/ five-wire
Start-up power 25kw 30kw 36kw 44kw 50kw 55kw 65kw 93kw
Running power 12kw 13kw 14.8kw 17.9kw 20kw 22kw 26kw 38kw
Background concentration of formaldehyde Less than 15ug/m3, minimum value: 6ug/m3
Recovery rate More than 90%
Air purification system Standard configurations
Size of climate chamber Customized

Testing Methods
1. The air is first processed by compressor to remove solid particles, formaldehyde and volatile organic compounds, and then enters into the test chamber.
2. The climate chamber is designed with an air jacket for conditioning the temperature in testing chamber.
3. By adopting dew point method, the humidity of climate chamber is well regulated and controlled.

Controller Interface (Multiple-Language)

  • Operation interface
  • Testing data
  • Curve graph
  • Malfunction alarm
  • Operation setting
  • Program setting
Manufacture Standards
GB18580-2001 Indoor Decorating and Refurbishing Materials-Limit of Formaldehyde Emission of Wood-Based Panels and Finishing Products
GB18584-2001 Indoor Decorating and Refurbishing Materials-Limit of Harmful Substances of Wood Based Furniture
GB18587-2001 Indoor Decorating and Refurbishing Materials-Limitations of Harmful Substances Emitted From Carpets, Carpet Cushions and Adhesives
ASTM D6007-02 Standard Test Method for Determining Formaldehyde Concentration in Air from Wood Products Using A Small Scale Chamber
ENV717-1 Wood-Based Panels. Determination of Formaldehyde Release. Formaldehyde Emission by the Chamber Method
HJ 571-2010 Technical Requirement for Environmental Labeling Products Wood Based Panels and Finishing Products
HJ 566-2010 Technical Requirement for Environmental Labeling Products Wooden Toys
Upholstered Furniture Limits of Harmful Substances from Sofa (Exposure Draft) and Climate Chamber for Detection of Volatile Organic Compounds in Furniture (Exposure Draft)
LY/T1980-2011 Determination Device of the Emission of Volatile Organic Compounds and Formaldehyde
LY/T1981-2011 Testing Apparatus for Formaldehyde Emission by the Gas Analysis Method
LY/T1982-2011 Large Chamber for Formaldehyde Emission of Wood-Based Panels and Its Products
